Professional photographers favor the M7 FL6mm lens for its 2MP resolution and lightweight 5g construction, while the SCS 3.7mm lens excels with its ultra-compact dimensions and 75-degree field of view. The Mini CCTV camera delivers reliable 960p imaging with 90-100° coverage, complemented by the Mini Hidden Spy Camera’s discreet 0.6-inch profile. The HD CCTV 3.7mm rounds out the selection with its F2.0 aperture and 83-degree viewing angle. Further specifications reveal why these five options dominate covert photography applications.
Key Takeaways
- The SCS 3.7mm lens offers ultra-compact dimensions of 0.15 x 0.15 x 0.04 inches with a wide 75-degree field of view.
- The M7 FL6mm lens provides superior 2MP resolution while weighing only 5g, making it ideal for professional covert surveillance.
- The Mini CCTV camera’s 3.6mm lens delivers a generous 90-100° viewing angle with day/night functionality for versatile shooting conditions.
- HD CCTV lens with M12*0.5 mount offers thorough 83-degree coverage with minimal blind spots at only 10g weight.
- Mini Hidden Spy Camera’s 3.7mm lens captures 1000TVL resolution in a remarkably small 0.6-inch cube design.

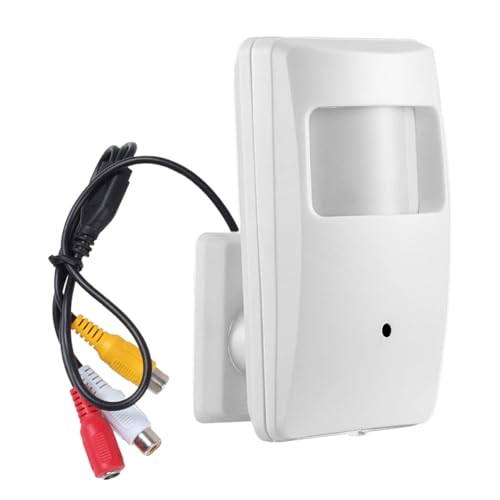

Mini CCTV Security Camera with Pinhole Lens for Home Surveillance
- [ Features ]1/3 CCD 1000TVL High Resolution Video Camera 3.6MM 90degree HD CCTV Mini Pinhole Security Camera。MIni Pipe Inspection Camera wide Lens
- [Easy to Hide] The camera is NTSC Video Format. It can view the objects without outside light source, lowe power consumption, high sensitivity. Easy to operate, install...
- [HD Images - More Function] High sensitivity and definition. Provides a brighter and clearer image quality. This mini camera displays in color during the day and...
For security-conscious homeowners seeking discreet surveillance solutions, the 1/3 CCD 1000TVL HD Mini CCTV Security Camera offers exceptional concealment capabilities with its specialized pinhole lens design. This VS-PIR207 model, released in May 2024, delivers 960p resolution through its 3.6mm lens with a 90-100° viewing angle.
The compact unit (2.4 x 1.18 x 3.9 inches) weighs just 3.52 ounces, making it ideal for inconspicuous installation in various residential settings. Operating in both day (color) and night (black/white) modes, the camera connects via CVBS protocol to DVRs, televisions, and CCTV monitors. Its versatile mounting options, strong anti-interference capabilities, and broad application potential make it particularly suitable for homeowners requiring reliable yet unobtrusive surveillance.
Best For: Homeowners and small business owners who need discreet video surveillance with easy installation options and compatibility with existing CCTV systems.
Pros:
- Highly concealable design with miniature size (2.4 x 1.18 x 3.9 inches) and specialized PIR housing perfect for discreet monitoring
- Versatile day/night functionality with color daytime recording and black/white night vision capabilities
- Broad 90-100° viewing angle captures wide areas with its 3.6mm lens and supports multiple mounting options
Cons:
- Limited to 960p resolution which may not meet needs of users requiring higher definition surveillance footage
- Requires corded electric power source (12V) without battery backup options for continuous operation
- No built-in wireless connectivity, requiring physical BNC connections to recording devices or monitors

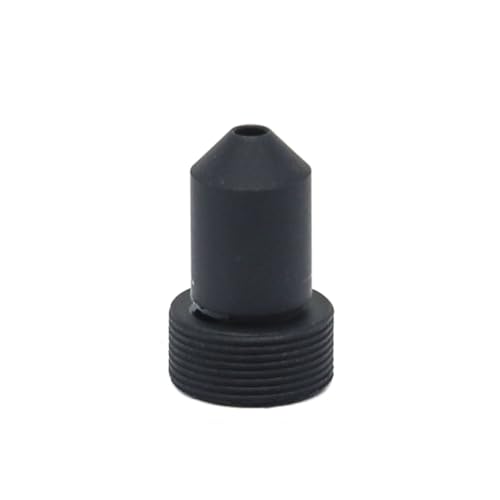

M7 FL6mm CCTV Lens for Security Pinhole Camera
- HD 2MP Resolution: Delivers sharp, high-definition video for reliable security monitoring.
- 24.5° Wide Field of View: Ideal for broad coverage in indoor and outdoor surveillance setups.
- Compact & Lightweight Design: Weighs only 5g for discreet installation in pinhole cameras.
The M7 FL6mm CCTV Lens stands out as a professional-grade optical solution for security specialists requiring discreet surveillance capabilities with exceptional clarity. Weighing only 5g, this compact M7x0.35 mount lens delivers 2MP resolution with a practical 24.5-degree field of view, making it ideal for focused monitoring applications.
You’ll find two filter configurations available: with IR Filter (650nm IRC) or without, allowing customization based on your camera’s sensor characteristics. Installation requires precise holder height matching, and you’ll notice the lens may feel loose during initial focusing—apply damping grease after adjustment for ideal stability. The March 2025 release maintains position #339 in Surveillance Camera Lenses, combining professional performance with accessibility.
Best For: Security professionals and surveillance system installers seeking a discrete, lightweight pinhole camera lens with high-definition capabilities for focused monitoring in covert applications.
Pros:
- Extremely lightweight at just 5g, making it ideal for installation in discreet locations without adding noticeable weight
- High-definition 2MP resolution provides clear image quality suitable for professional security applications
- Available with or without IR filter options to accommodate different lighting environments and camera sensor specifications
Cons:
- Limited 24.5-degree field of view may require multiple cameras for comprehensive coverage of larger areas
- Requires precise installation matching with holder height and pitch specifications
- May feel loose during initial setup and requires damping grease application after focusing for proper stabilization

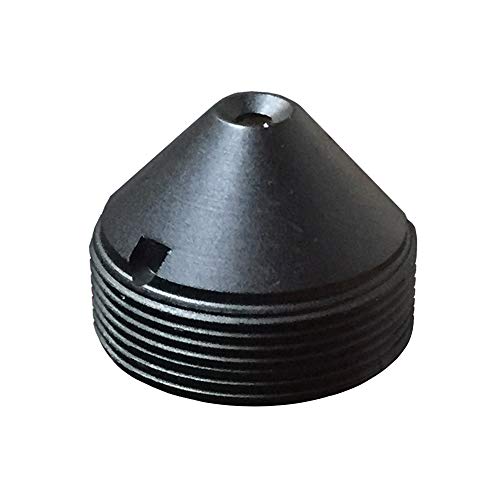

SCS 3.7mm Super Conical Pinhole Lens with Full Spectrum Filter
- This quality pinhole lens comes with a full spectrum filter. The filter can be removed if needed.
- Focal Length: 3.7mm
- Format: 1/3 or 1/4 Sensor
Surveillance professionals seeking an ultra-compact lens solution will find the SCS 3.7mm Super Conical Pinhole Lens particularly valuable for discreet monitoring applications. This Chinese-manufactured lens, measuring merely 0.15 x 0.15 x 0.04 inches with an F1.8 aperture, delivers a substantial 75-degree diagonal field of view when paired with 1/3 or 1/4 sensors. The M12 thread mount guarantees compatibility with numerous camera systems, while its removable full spectrum filter provides flexibility for various lighting environments.
The Model 37PSC-D’s performance metrics reflect moderate user satisfaction, evidenced by its 3.0/5 star rating. Weight considerations are minimal at just 1.6 ounces, making this non-IR-sensitive lens suitable for installations where size constraints are paramount.
Best For: Surveillance professionals seeking a compact, concealable lens solution for discreet monitoring applications where space constraints are critical.
Pros:
- Ultra-compact dimensions (0.15 x 0.15 x 0.04 inches) make it ideal for covert installations
- Wide 75-degree diagonal field of view provides excellent coverage for small spaces
- Removable full spectrum filter offers versatility for different lighting conditions
Cons:
- Moderate user satisfaction with just a 3.0/5 star rating
- Not sensitive to infrared light, limiting its effectiveness in low-light environments
- Limited technical support as indicated by the modest market ranking (228th in Surveillance Camera Lenses)
Mini Hidden Spy Camera HD 1000TVL for Security Surveillance
- EXTENSIVE APPLICATION: Use as FPV camera, also for surveillance systems in various needs
- EASY TO CONCEAL: Formed with pinhole design, compact, simple. Mini size, portable enough, a preferred choice as a spy camera
- 1000TVL HIGH DEFINITION: Built-in CMOS image sensor, deliver crisp and exquisite image. Improve visual experience
Security-conscious homeowners and businesses will find exceptional value in this wired pinhole camera, offering 1000TVL high definition resolution through its built-in CMOS image sensor. The compact 0.6 x 0.6 x 0.6 inch dimensions enable discreet placement, while the 3.7mm pinhole lens provides a 90° viewing angle for thorough surveillance coverage.
This camera’s wired BNC/RCA connectivity guarantees stable transmission without wireless interference concerns, making it ideal for continuous monitoring applications. The system operates with minimal illumination requirements (0.5LUX) and maintains a strong signal-to-noise ratio (>48dB), delivering clear color imagery even in challenging lighting conditions. Recent customer feedback (3.6/5 stars) highlights its effectiveness as an undetected security tool despite occasional connection challenges.
Best For: Homeowners, small business owners, and parents seeking a discreet wired surveillance solution that provides reliable HD monitoring without wireless connectivity concerns.
Pros:
- Compact dimensions (0.6 x 0.6 x 0.6 inches) with pinhole design allows for inconspicuous placement in virtually any indoor location
- 1000TVL high definition resolution with 90° viewing angle delivers clear, detailed color footage for effective monitoring
- Wired BNC/RCA connection ensures stable, interference-free transmission with no risk of wireless signal hacking or dropout
Cons:
- Some users report issues with the included BNC converter and connection problems between components
- Limited to 480p video capture resolution despite the 1000TVL specification
- No built-in audio recording capability, requiring separate equipment for sound monitoring

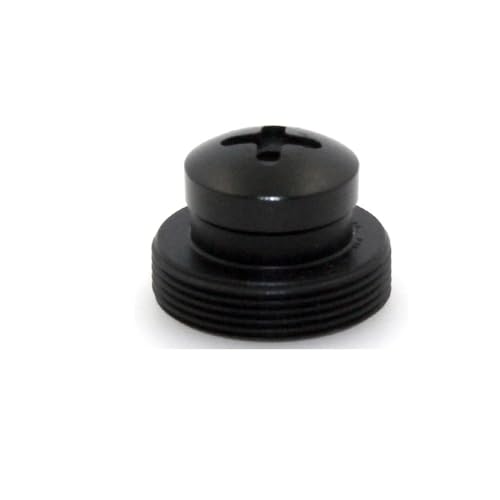

HD CCTV Lens Pinhole 3.7MM M12*0.5 Mount 1/3 F2.0 1/ for CCTV Cameras
- High Definition CCTV lens for superior image quality
- Pinhole design for discreet surveillance
- 3.7MM focal length for wide-angle coverage
Discreet monitoring professionals seeking compact surveillance solutions will find exceptional value in this HD CCTV pinhole lens. The 3.7MM focal length delivers an impressive 83-degree viewing angle, enabling thorough coverage of target areas with minimal blind spots. This lightweight component, weighing just 10g, integrates seamlessly with standard CCTV systems via its M12*0.5 mount.
The lens’s F2.0 aperture performs adequately in varying light conditions, while its 1/3 image format guarantees compatibility with most contemporary surveillance cameras. Manufactured by WANGZC in China, this lens maintains position #316 in Surveillance Camera Lenses rankings, demonstrating reliable market performance.
Best For: Security professionals and discreet surveillance installers seeking a compact, wide-angle pinhole lens for covert CCTV monitoring applications.
Pros:
- Provides an excellent 83-degree wide viewing angle that minimizes blind spots in surveillance coverage
- Ultra-lightweight design at just 10g makes it ideal for installations with weight constraints
- Standard M12*0.5 mount ensures compatibility with most contemporary CCTV camera systems
Cons:
- F2.0 aperture may deliver suboptimal performance in extremely low-light conditions
- Limited focal length options with only 3.7MM available in this model
- Basic warranty and support information lacks detailed coverage specifics for professional installers
Factors to Consider When Choosing a Pinhole Camera Lens
Selecting the appropriate pinhole camera lens requires careful evaluation of several critical technical specifications that directly impact image quality and application suitability. Focal length options and field of view measurements determine the camera’s perspective range, while mounting thread compatibility (such as M12×0.5) guarantees proper physical integration with the intended camera body. Sensor size considerations and light sensitivity ratings (expressed as F-stops) further influence image resolution and performance in varying illumination conditions, necessitating alignment between lens capabilities and specific surveillance or photography requirements.
Focal Length Options
The focal length of a pinhole camera lens represents one of the most critical specifications that determines the camera’s field of view and overall imaging characteristics. Shorter focal lengths, approximately 3.7mm, deliver expansive viewing angles up to 83 degrees, maximizing coverage area in surveillance applications. Conversely, longer 6mm lenses narrow the field of view to approximately 24.5 degrees, enabling detailed capture of specific zones with reduced peripheral distortion.
Standard pinhole lens options typically range from 3mm to 6mm, with each increment substantially affecting image composition and spatial representation. The 3-4mm range provides wide-angle coverage between 75-100 degrees while maintaining reasonable depth of field across varying distances. Selection criteria should prioritize the balance between coverage requirements and image quality, as wider angles introduce more peripheral distortion but capture broader scenes compared to narrower, more focused longer focal lengths.
Field of View
Understanding a pinhole camera’s field of view constitutes a fundamental consideration when selecting appropriate lenses for specific surveillance applications. The relationship between focal length and sensor size directly determines this parameter, with shorter focal lengths yielding wider angles up to approximately 100 degrees for extensive coverage.
Surveillance scenarios requiring extensive environmental monitoring benefit from wider fields of view (75-90 degrees), capturing larger areas in single frames. Conversely, narrower angles (20-25 degrees) excel at providing detailed observation of distant subjects for focused monitoring tasks. Image distortion correlates directly with viewing angle; fields exceeding 90 degrees typically introduce fisheye effects, while those under 60 degrees minimize distortion considerably.
Technical configurations, such as pairing a 1/3-inch sensor with a 3.7mm focal length lens, achieve approximately 75-degree coverage, establishing an ideal balance between spatial awareness and image clarity for most security applications.
Mounting Thread Compatibility
Compatibility between mounting threads represents a critical technical consideration when integrating pinhole camera lenses into surveillance systems. The thread diameter and pitch must precisely match camera specifications to guarantee secure attachment and ideal alignment of optical components. M12×0.5, CS-mount, and C-mount threading standards represent common configurations in current pinhole lens designs, with each serving specific application requirements.
Incompatible thread patterns frequently result in mechanical instability, causing image degradation through misalignment of the optical path. Professional installers verify threading specifications during the initial selection phase, preventing potential issues related to lens loosening during operation or damage to delicate camera components. Thread verification becomes particularly essential in multi-camera deployments where standardization across equipment guarantees maintenance efficiency and system interchangeability. Camera manufacturers typically specify compatible thread types in technical documentation, serving as the definitive reference for lens selection.
Sensor Size Considerations
Beyond proper thread compatibility, sensor size represents a fundamental parameter that greatly influences pinhole lens selection and performance outcomes. The relationship between sensor format (1/3-inch, 1/4-inch) and pinhole lens characteristics directly affects field of view, image coverage, and overall quality. Larger sensors, such as 1/3-inch variants, typically demonstrate superior light sensitivity and detail reproduction compared to their smaller counterparts.
Matching lens specifications to sensor dimensions prevents common imaging problems including vignetting and inefficient sensor utilization. Sensor dimensions additionally impact effective focal length calculations; a pinhole lens selected for a 1/3-inch sensor requires different specifications to achieve equivalent wide-angle results on different formats. Most professional applications favor 1/3-inch sensors for their ideal balance between resolution capacity and low-light performance, making this consideration essential for system integration and achieving desired image characteristics.
Light Sensitivity Ratings
The light sensitivity rating of a pinhole camera lens represents a critical performance metric that determines its operational efficacy in various illumination conditions. High-performing pinhole lenses frequently exhibit minimum illumination values below 1 lux, enabling functionality in near-darkness scenarios essential for surveillance applications.
Lens aperture specifications, denoted by f-numbers such as F1.8 or F2.0, directly correlate with light-gathering capacity—lower values indicating superior performance in dim environments. Sensor technology greatly impacts overall sensitivity, with modern CMOS and CCD sensors achieving signal-to-noise ratios exceeding 48 dB, effectively minimizing image noise in low-light conditions. Wide-angle configurations with 75-90 degree fields of view enhance light collection capabilities across broader areas. Additionally, specialized modes like NTSC format or black-and-white night settings optimize performance by prioritizing illumination sensitivity over color fidelity when light levels decrease.
Filter Availability
Filter options for pinhole camera lenses represent an essential selection criterion that greatly impacts image quality across varying light conditions. High-quality pinhole lenses typically offer IR cut filters, which effectively block unwanted infrared radiation that would otherwise cause color distortion in captured images. These specialized filters guarantee accurate color reproduction regardless of ambient lighting environments, particularly essential for surveillance applications operating in variable conditions.
Removable filter systems provide superior versatility, allowing users to alternate between filtered modes for daytime operation and unfiltered modes for night surveillance. Full spectrum filters, available on premium models, capture an expanded wavelength range without interference, resulting in more natural image rendering. When evaluating filter options, professionals should specifically examine whether a lens includes filters engineered to minimize IR-induced color casts, as this capability greatly enhances overall image fidelity and practical functionality in complex lighting scenarios.
Size and Weight
Physical dimensions and mass considerations of pinhole camera lenses constitute critical selection factors that directly influence installation versatility and operational discretion. Most professional-grade units measure between 0.04 to 1.18 inches in length, with smaller profiles enabling integration into confined spaces where concealment is paramount.
Weight specifications typically range from 5 to 50 grams, with premium covert options weighing under 10 grams to minimize mounting strain and maximize placement flexibility. Lenses measuring less than 0.5 inches in certain dimensions offer superior concealment potential, particularly valuable in surveillance applications requiring unobtrusive positioning.
The dimensional profile-to-performance ratio remains a key consideration, as compact sizes often correlate with enhanced mobility and deployment options without sacrificing optical quality, allowing photographers to achieve ideal results while maintaining discreet operational footprints in both fixed and mobile installations.
Infrared Capabilities
When selecting pinhole camera lenses for surveillance applications, infrared capabilities represent an essential technical consideration that greatly impacts operational versatility across varying light conditions. Infrared sensitivity, typically measured in wavelengths above 700nm, determines a lens’s effectiveness in low-light environments. Lenses without IR filters deliver superior night performance, capturing details invisible to the naked eye by utilizing ambient IR radiation.
Full spectrum filters, while reducing IR sensitivity, provide balanced color reproduction across visible wavelengths, eliminating unwanted color shifts that compromise daytime footage quality. Modern pinhole lenses offering adjustable infrared capabilities through removable filters present the ideal solution, allowing operators to adapt to changing surveillance scenarios. These adaptable systems maximize operational effectiveness by extending detection ranges up to several hundred nanometers beyond visible light, ensuring consistent performance regardless of illumination conditions.
Frequently Asked Questions
Can Pinhole Camera Lenses Be Used for Artistic Photography?
Pinhole camera lenses serve as exceptional tools for artistic photography, offering unique aesthetic qualities unattainable with conventional optics. The characteristic soft focus, vignetting, and infinite depth of field create dreamlike, ethereal images prized in fine art photography. Professional photographers utilize pinhole techniques to achieve distinctive visual signatures through minimalist equipment. The deliberate imperfections—diffraction patterns, light falloff, and subtle distortion—transform ordinary scenes into contemplative visual studies that emphasize mood and atmosphere over technical perfection.
What’s the Average Lifespan of a High-Quality Pinhole Lens?
High-quality pinhole lenses typically exhibit exceptional durability, with average lifespans ranging from 8-15 years under normal usage conditions. Metal-constructed pinholes, particularly those crafted from brass or stainless steel, demonstrate superior longevity compared to plastic variants. Deterioration primarily manifests through aperture edge degradation, which incrementally affects image quality. Environmental factors, including humidity exposure and cleaning frequency, greatly impact operational lifespan. Professional-grade models, incorporating protective coatings, can extend functionality beyond typical durability parameters.
Are Pinhole Lenses Compatible With DSLR or Mirrorless Cameras?
Like the ancient navigator using the simplest of tools to chart vast oceans, modern photographers can connect pinhole optics to sophisticated digital systems. Pinhole lenses are indeed compatible with both DSLR and mirrorless cameras through dedicated adapters designed for specific mounts. Manufacturers offer purpose-built pinhole body caps for Canon EF, Nikon F, Sony E, Fujifilm X, and Micro Four Thirds systems. Third-party options provide variable aperture pinholes, offering photographers precise control over exposure and diffraction characteristics.
How Do Light Conditions Affect Pinhole Camera Image Quality?
Light conditions critically affect pinhole camera image quality due to several technical factors. Exposure times increase dramatically in low light, often requiring seconds or minutes compared to milliseconds with conventional lenses. Contrast ranges diminish in poor lighting, producing flat, underexposed images. Bright conditions offer ideal results with pinhole cameras, yielding sharper images and deeper contrast, while maintaining the characteristic soft-focus aesthetic. Photographers must compensate for poor lighting with longer exposures and stable mounting systems.
Can Pinhole Lenses Capture Motion Without Significant Blur?
Pinhole lenses face notable challenges in freezing movement due to their inherently slow f-stops (typically f/128-f/256). This optical limitation necessitates extended exposure times—often 1-4 seconds in daylight and 30+ seconds in dimmer conditions—making motion blur virtually unavoidable. Photographers must either incorporate this blur as an artistic element or utilize extremely bright lighting (10,000+ lux) alongside high-sensitivity film/sensors (ISO 3200+) to minimize, though rarely eliminate, motion artifacts.
